32" Minster Servo Coil Feedline
32" Minster Servo Coil Feedline
Specifications
| Max width of coil | 32" |
| Manufacturer | Minster / CoilTech |
| Model | MEF 6-32S |
| Condition | Used |
| Stock Number | 11393 |
| Max coil thickness | .156" @ 32" |
| Max coil weight | 20,000lbs. |
Additional Features

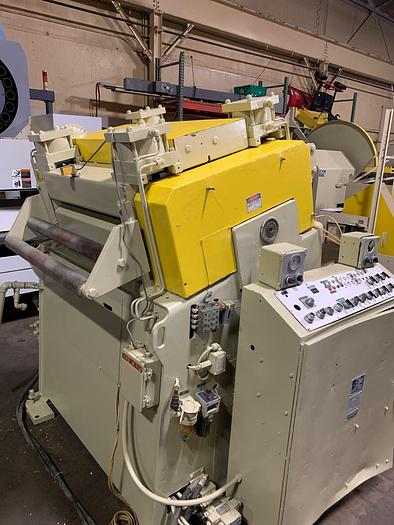

Feeder:
6" diameter upper and lower feed rolls, Air operated upper roll lift / pilot, Pressure regulators for roll lift / pilot adjustments, Adjustable dual roll stock width edge guides, Cabinet base mounted, Adjustable pass line height (44"-66"), INDRAMAT Servo drive and controls package

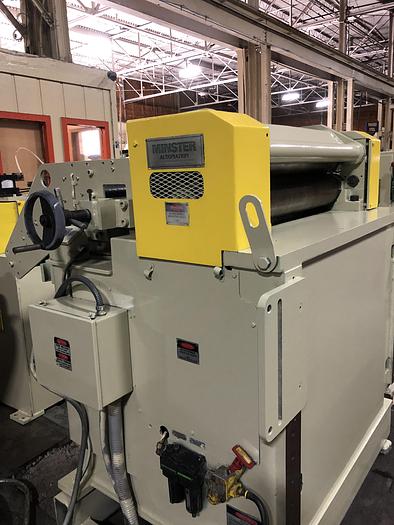

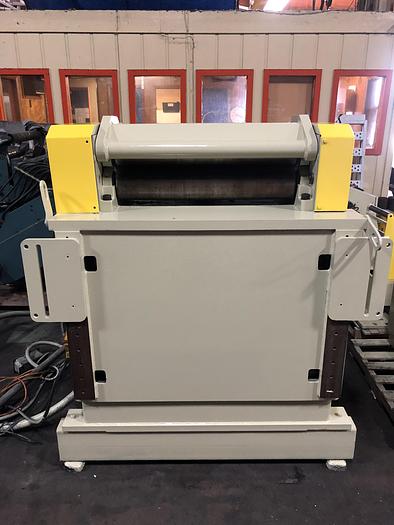

Straightener:
Inclined straightening head, Five straightening rolls x 4" diameter, Individual upper straightening roll adjustments, Entry and exit pinch rolls, Air operated upper pinch roll adjustments, Outboard pressure regulators, Hand crank stock width edge guides, Entry width scales and pointers, Peeler table with spade extension, Exit cascade loop support rollers, 240 / 480 Volt, Variable speed drive, Jog forward and reverse, Auto / Run cycle, Loop control

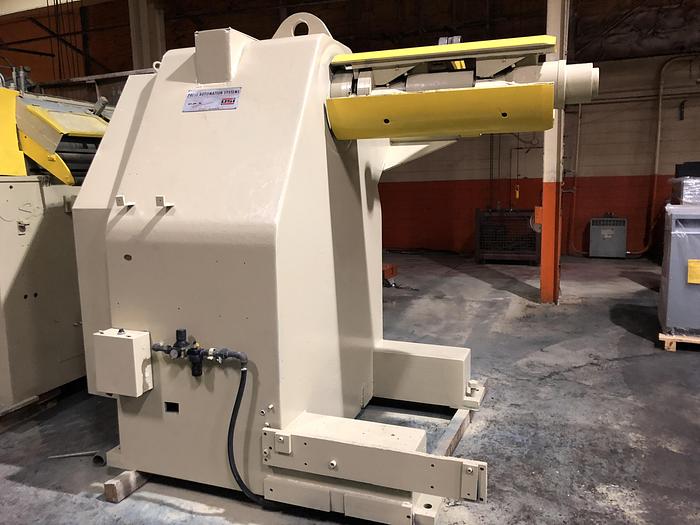

Uncoiler:
3 Leaf Mandrel, Hold Down Arm, Powered Expansion
