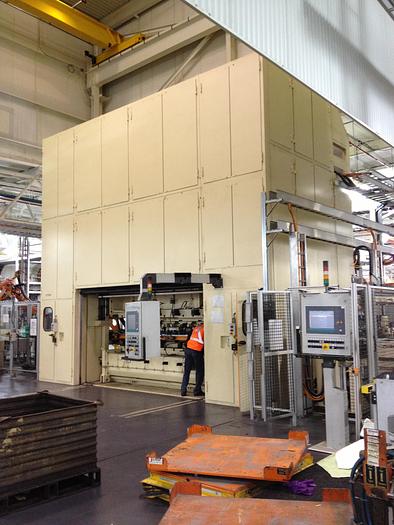

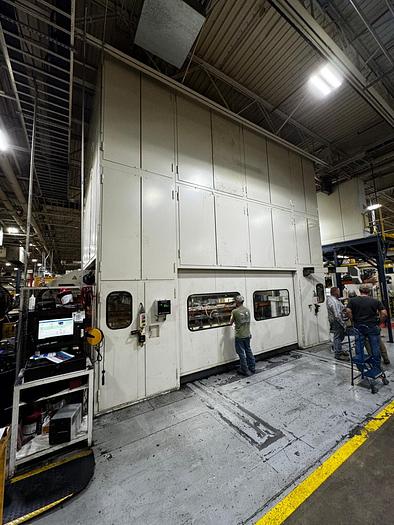

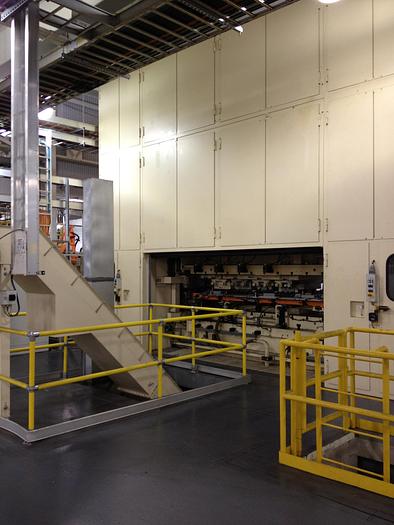

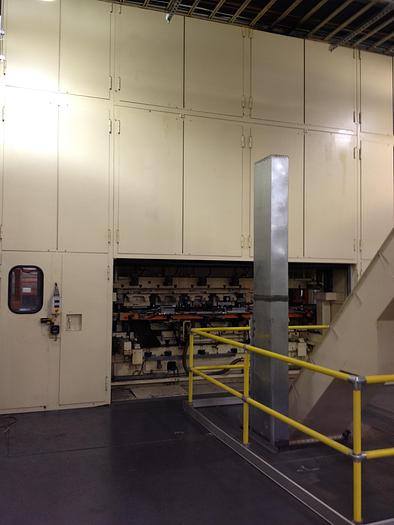

693 ton Muller Weingarten SSDC Stamping Press
693 ton Muller Weingarten SSDC Stamping Press
Contact us for price
Specifications

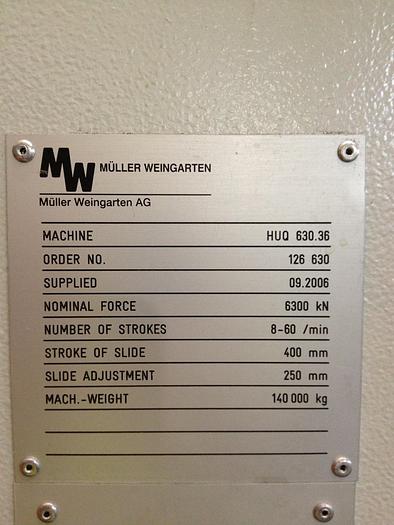

| Manufacturer | Muller Weingarten AG |
| Model | HUQ 630.36 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 11640 |
| Capacity | 693 US Ton |
| Bed area | 141.7" x 51.18" (3600mm x 1300mm) |
| Stroke length | 15.7" (400mm) |
| Adjustment | 9.8" (250mm) |
| Strokes per minute | 8-60 spm |
Additional Features

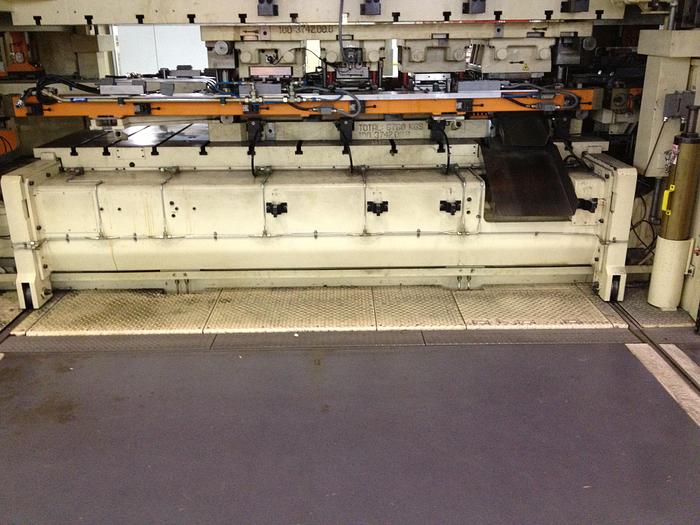

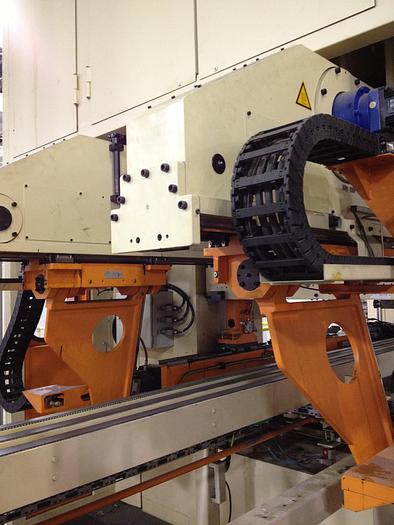

3 Axis Servo Transfer
Overall Press Dimensions:
Length 23’
Width 12’3”
Height 21’ 1/4”

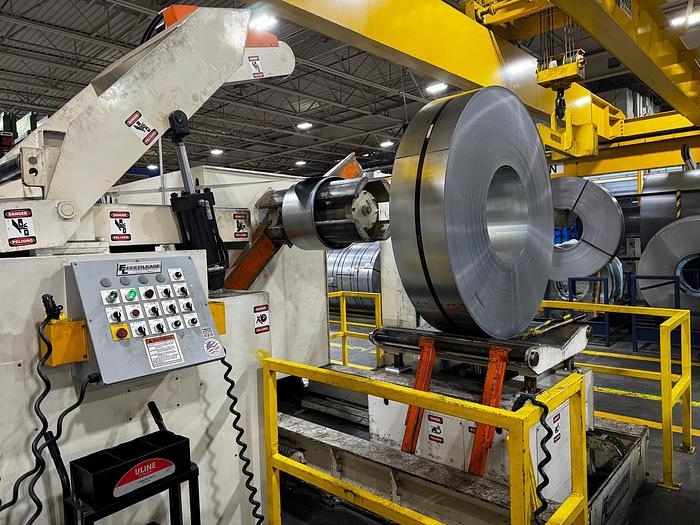

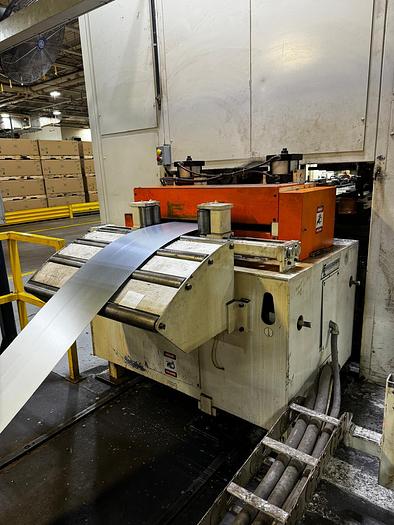

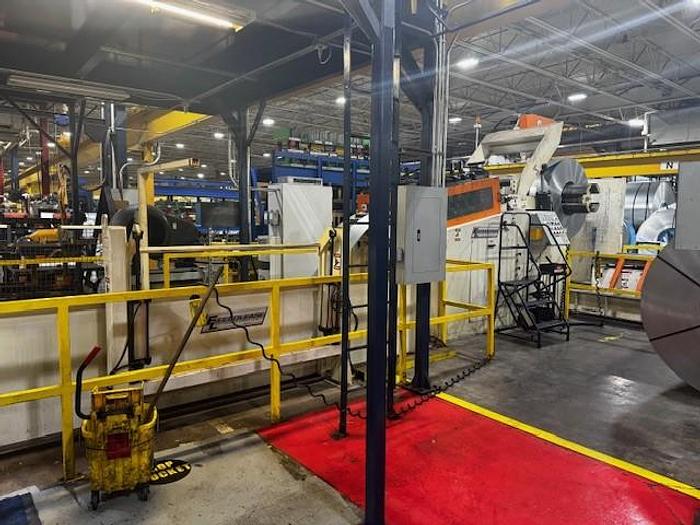

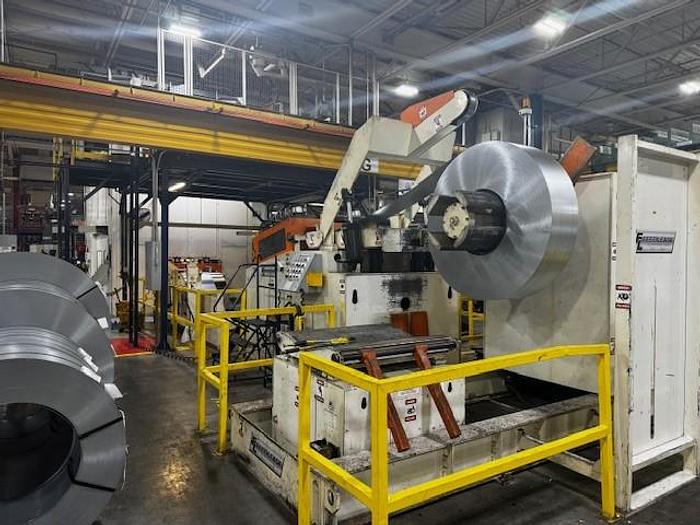

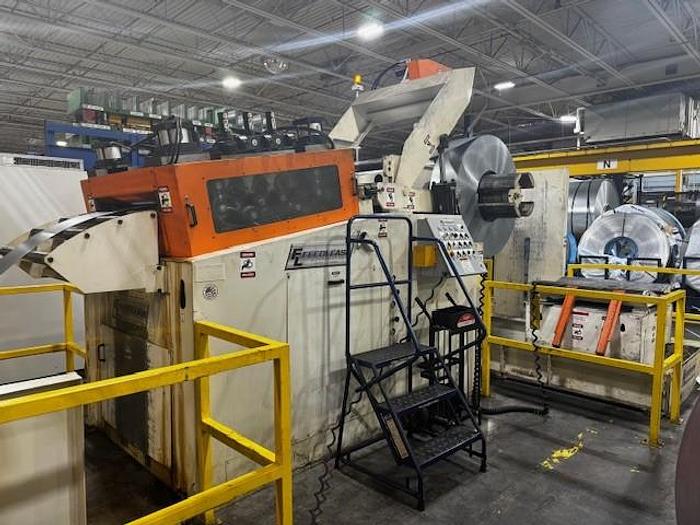

FeedLease Coil Feed Line:
Model Number:
RF-6-36, FLTT-3618, FLPS-4.25-7-36,
R-40M-36
Serial Number:
5596-5599
SPECIFICATIONS
Maximum stock width: 36”
Maximum coil weight: 40,000 lbs
Minimum coil I.D 19 1/2”
Maximum coil I.D 24 1/2”
Maximum coil O.D.: 72”
Maximum stock thickness (HSS – up to 60,000 KSI yield): .187” @36”
Maximum stock thickness (HSS – up to 60,000 KSI yield): .236” @12”
Minimum Stock Thickness: .030”
SYSTEM SPECIFICATIONS
Accuracy at feed rollers - to within plus/minus: .003 in.
Maximum feed length: 0 to 999.999 in.
Input power supply: 460 Volts, 3 Phase, 60 Hertz
Input air supply minimum : 80 PSI
Pass-Line: 48 +/- 5”
Feed Direction : Right to Left
