220 ton SCHULER TMK Used Stamping Press
220 ton SCHULER TMK Used Stamping Press
Contact us for price
or
Call 313-963-6576
Description

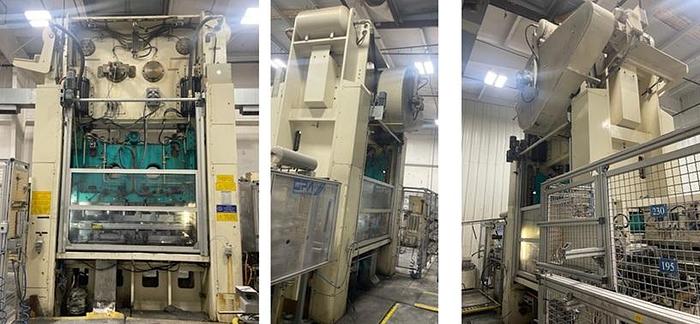

The knuckle-joint presses from the TMK series are ideally suited to a wide range of forming jobs. The machines can cost-effectively blank, draw, emboss, punch, and calibrate parts in a single sequence of operations. The different stages in the process can also be combined with one another.
Specifications

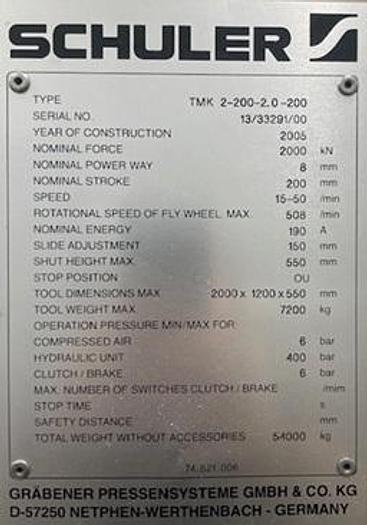

| Manufacturer | Schuler |
| Model | TMK 2-200-2.0-200 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 11652 |
| Capacity | 220 ton |
| Max Tool Dimension | 2000mm x 1200mm (78.7"x47.2") |
| Stroke length | 200mm (7.8") |
| Shut height | 550mm (21.65") |
| Slide adjustment (powered) | 150mm (5.9") |
| Strokes per minute | 15-50 |
Additional Features

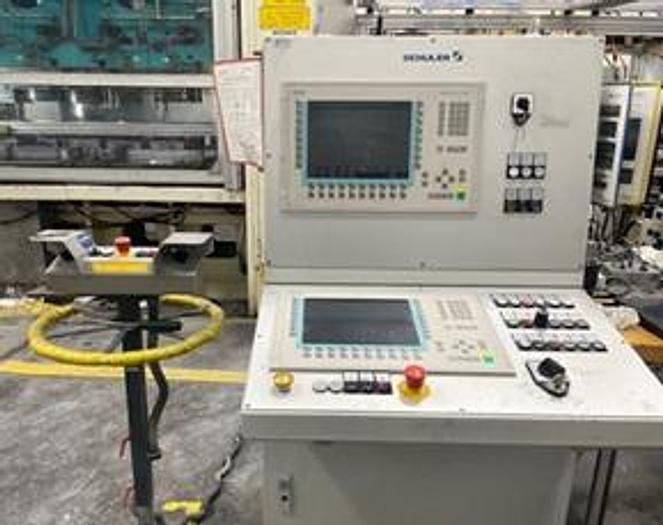

Siemens Controls
